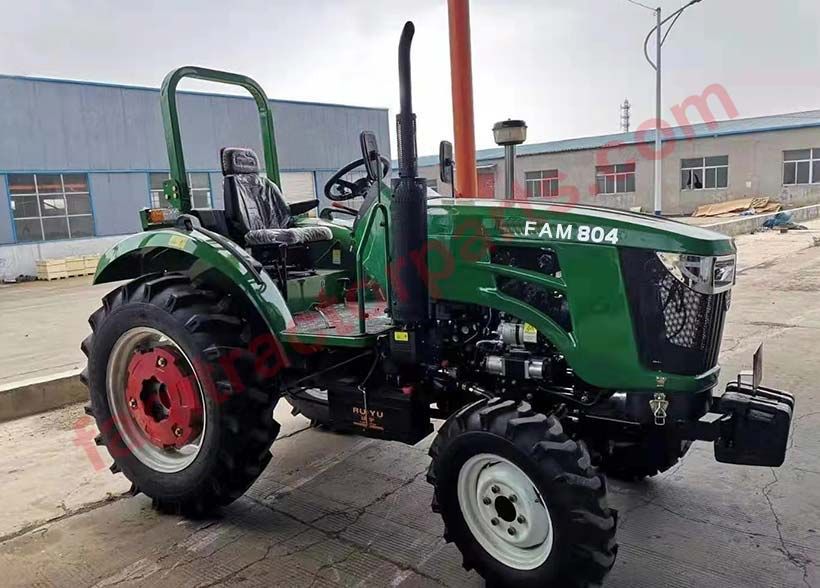

| Model | FAM804 |
| Type | 4 WD(four-wheel drive) |
| Overall dimensions(mm) | 3700×1620×2570(with cabin）3700×1620×2350(with frame） |
| Wheel Base(mm) | 1980 |
| Front Tread(mm) | 1330 |
| Rear Tread(mm) | 1300 |
| Min. Ground Clearance | 380 |
| Min.Operation Mass (kg) | 2570（with cabin）2340（with frame） |
| Front Ballast（kg） | 144 |
| Rear Wheel Ballast(kg) | 360 |
| PTO Power(kW) | 50.2 |
| Max. Drawbar pull(kN) | 22.6 |
| Starting Method | Electric starting |
| No.of gears | 8F+2R |
| Theoretical Speed(km/h) | F：2.59/3.26/5.31/8.43 H：11.01/14.75/23.40/31.49 R：3.47 H：12.48 |
| Engine Model | 4D32ZT33/804 |
| Type | Direct line, direct injection, water cooling, four stroke |
| Air Intake Type | Inhale under pressure |
| Cylinders | 4 |
| Bore X Stroke(mm) | 98X105 |
| Rated power(kW) | 59 |
| Rated Speed(r/min) | 2400 |
| Cooling type | Water circulating cooling type |
| Fuel tank capacity (L) | 45 |
| Steering type | Full hydraulic steering |
| Braking system | Shoe brake |
| Clutch | dry, double. |
| Transmission Box | (4+1)x2Component type |
| Gearshift | Mechanical shift with stage |
| Central Drive | helical bevel gear |
| Differential | closed planet pinion |
| Final Drive | Closed, planetary gear |
| Front Tyre Size | 7.50-16 |
| Rear Tyre Size | 12.4-28 |
| Front Tyre Pressure (kPa) | 120-150 |
| Rear Tyre Pressure (kPa) | 120-150 |
| Three Point Linkage Type | Rear three point suspension |
| Hydraulic lift type | Semi-seperated |
| Max. Lifting Force (kN) | 14.9 |
