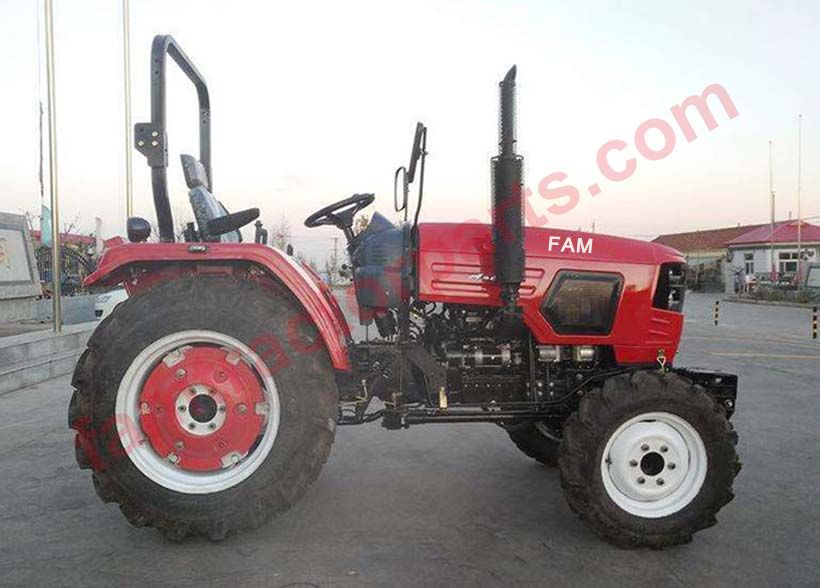

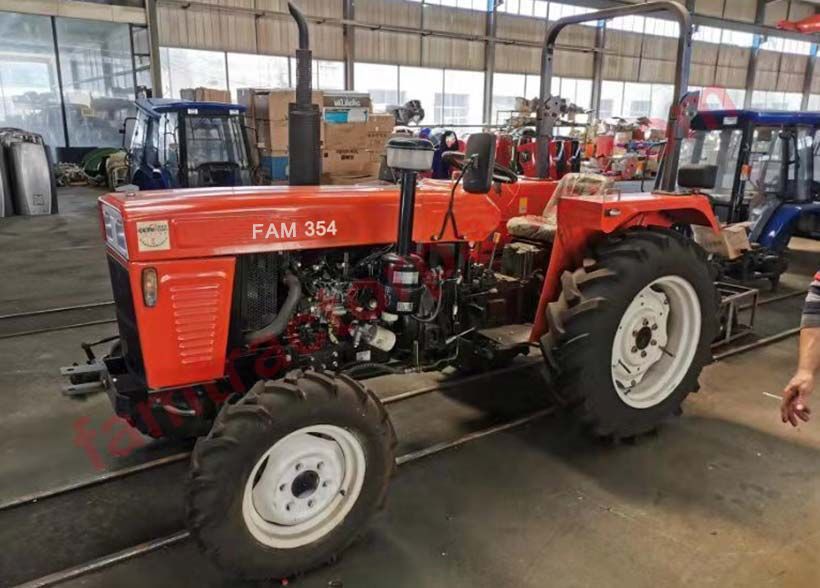

| Model | FAM-354 | Type | 4WD |
| Overall dimensions (mm) | 3280×1400×2200 | Wheel Base (mm) | 1700 |
| Front Tread (mm) | 1140 | Rear Tread (mm) | 1100 |
| Min. Ground Clearance | 270 | Min. Operation Mass (kg) | 1550 |
| Front Ballast（kg） | 58 | Rear Wheel Ballast(kg) | 105 |
| PTO Power (kW) | 22 | Max. Drawbar pull (kN) | 10.3 |
| Starting Method | Electric starting | No.of gears | 8F+2R |
| Theoretical Speed (km/h) | F : 2.70; 4.25; 6.63; 8.13; 10.21; 12.8; 19.95; 30.70; R : 3.63; 8.91 | Engine Model | 4TE35A |
| Type | 4-stroke, vertical | Air Intake Type | Natural |
| Cylinders | 4 | Bore X Stroke (mm) | 105X117 |
| Displacement (L) | 2.22 | Compression ratio | 18:1 |
| Rated power (kW) | 25.8 | Rated Speed (rpm) | 2400 |
| Cooling type | Water circulating cooling type | Fuel tank capacity (L) | 42 |
| Steering type | Full hydraulic steering | Braking system | Shoe brake |
| Clutch | dry, single plate, constant mesh | Transmission Box | (4+1)x2Component type |
| Gearshift | Engaging Sleeve shifting | Central Drive | helical bevel gear |
| Differential | closed planet pinion | Final Drive | Built - in, single stage straight gear cylindrical gear |
| Frame type | No frame | Front Tyre Size | 6.50-16 |
| Rear Tyre Size | 11.2-24 | Front Tyre Pressure (kPa) | 120-150 |
| Rear Tyre Pressure (kPa) | 120-150 | Three Point Linkage Type | Rear three point suspension |
| Hydraulic lift type | Semi-seperated | Tillage depth control | Comprehensive adjustment of force and position |
| methodHydraulic lift pump | CBN-E306L；CNB-E306R | Hydraulic output | / |
| PTO Type | Type I, rear mounted, semi- | PTO Splines Numbers | 8 |
| PTO Rev.(r/min) | 540/760 | Outer Dia. of PTO Spline（mm） | 38 |
| Max. Lifting Force (kN) | 8.41 |
